Can I add radiant ceiling heat to an existing home?

The short answer

Yes. With attic access, the panels go above the existing ceiling. Without it, furring strips go on the existing ceiling, the panels go between them, and new drywall covers everything.

Retrofitting an existing ceiling

Fasten 2 × 2 furring strips or 2 × 4s across the existing ceiling, place the heating panels as shown on the Premier Energy USA layout drawing, and wire them to the thermostat or a relay junction box. Then put up new drywall. The result is an invisible heating system.

In most retrofits and remodels, the homeowner or a local electrician does the installation, sometimes with Premier Energy USA helping coordinate.

Remodels

If a remodel opens the ceiling anyway, the panels go between the joists before the new ceiling goes up. One couple remodeling a home built in 1904–1906 replaced a 1960s ceiling heating system this way.

Replacing old ceiling cable heat

Many homes built from the 1950s through the 1970s have ceiling cable heat: heating cable stapled to the ceiling and buried in plaster, or sandwiched between two layers of drywall. When a cable breaks, finding the break means opening the ceiling, and few electricians work on these systems anymore. ThermaRay panels can replace it room by room, either above the existing ceiling with attic access or on furring strips below it, covered with new drywall.

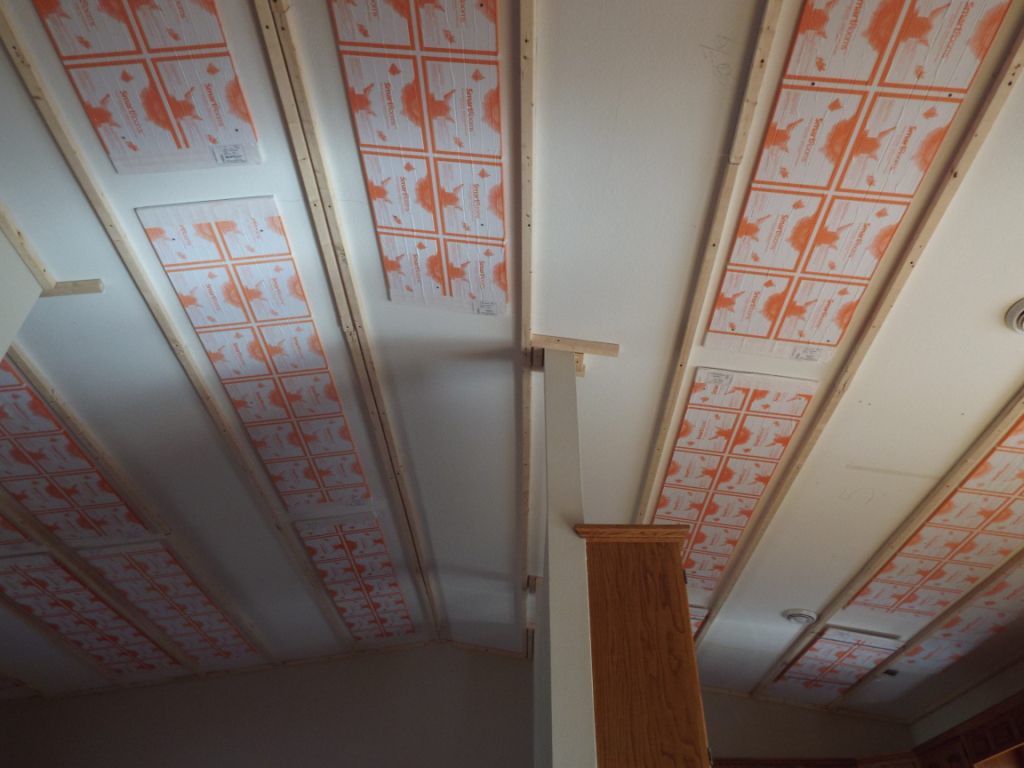

Heating panels fastened between furring strips on an existing ceiling
Panels between furring strips on the existing ceiling.

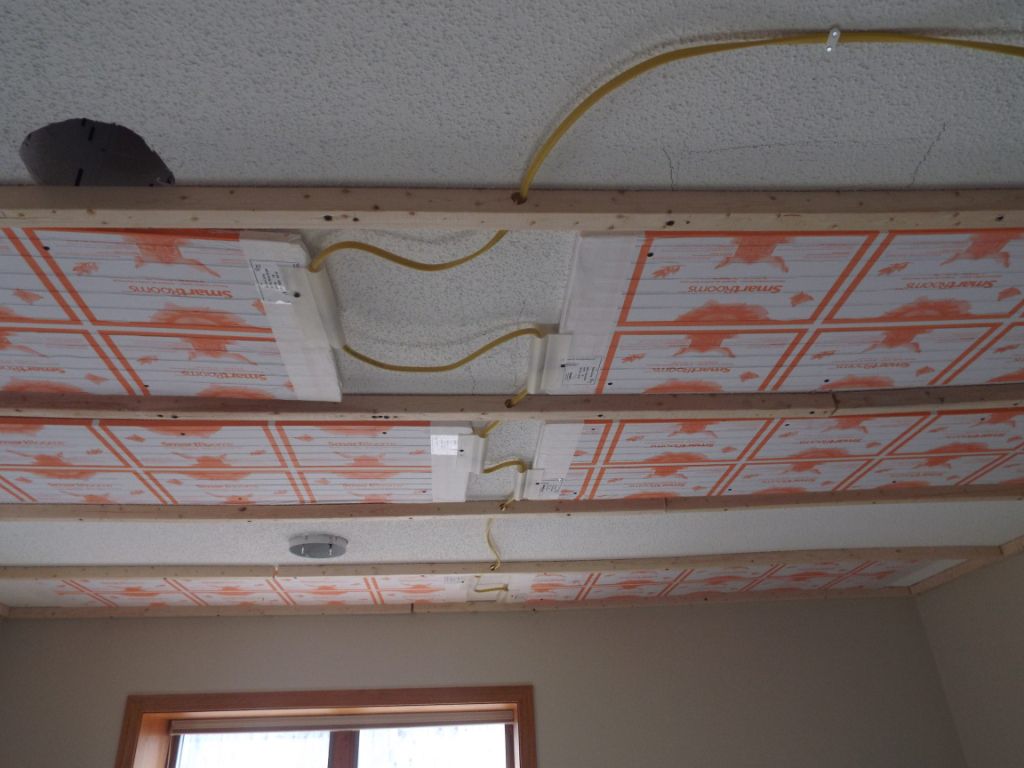

Wired heating panels on an existing ceiling before the new drywall
The panels wired.

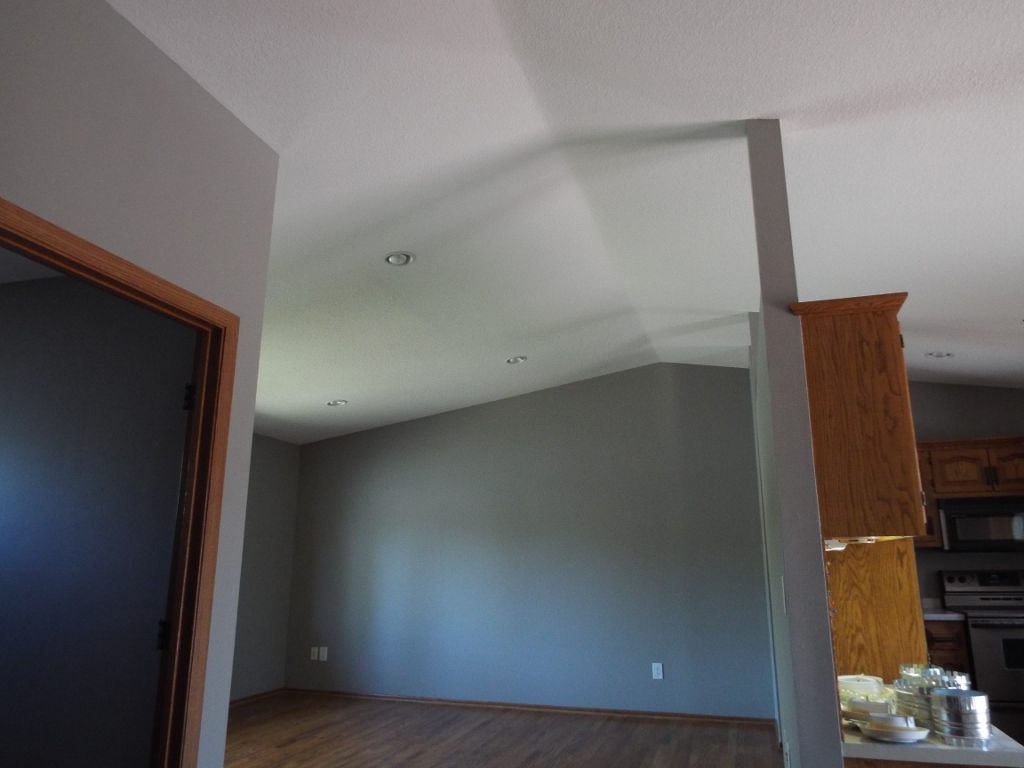

Finished room with a smooth ceiling and no visible heating
The finished ceiling, with the heat out of sight. Photos from the split-level retrofit project.

See the Project

Read the Original Article

Watch it.

A couple on their radiant ceiling remodel
