Heated driveways and walkways that clear themselves.

A ThermaRay snow & ice melting system sits below concrete, pavers or asphalt. Sensors turn it on when snow or ice is coming, so the surface stays clear without shoveling, plowing or salt.

Where it goes
Under concrete, pavers or asphalt
Best for
Driveways, sidewalks, steps, ramps, entrances, loading aprons, parking areas
Role
Automatic snow and ice removal
Where snow and ice melting goes. Choose another system to compare.

Below the surface,
where it lasts.

This is a limited mass snow & ice melting system. The panels are installed below the wear surface in 2"-6" of sand. The system is protected from cracking, heaving, shifting, cracks, cuts and chemicals.

Insulation can be placed under the heating panels to push the heat up as fast as possible., but not required.

Keeping entrances, sidewalks, steps, ramps and parking areas clear. Eliminates snow removal time and cost. Exponentially lowers the risk of slip-and-fall injuries. Concrete lasts longer without chemicals.

ThermaRay snow melting panels laid out prior to sand and concrete for a garage apron.
ThermaRay snow melting panels laid out prior to sand and concrete for a garage apron.

What you get

  • No shoveling, plowing, salt or chemicals
  • Turns on automatically when snow or ice is coming
  • Black ice detection available
  • Reduces slip-and-fall risk and liability
  • Cuts snow removal time and cost
  • Helps concrete last longer
  • No moving parts and no maintenance
  • Qualifies for 15 LEED points

Sensors decide when
it runs.

Snow sensors watch moisture and temperature. When they detect that snow or ice is about to form, they turn the system on and keep the surface clear until conditions pass. Then it shuts off, so it only uses power when it’s needed.

The panels go on 1 to 2 inches of rigid foam board or Low-E Slab Shield insulation, with the concrete, pavers or asphalt on top.

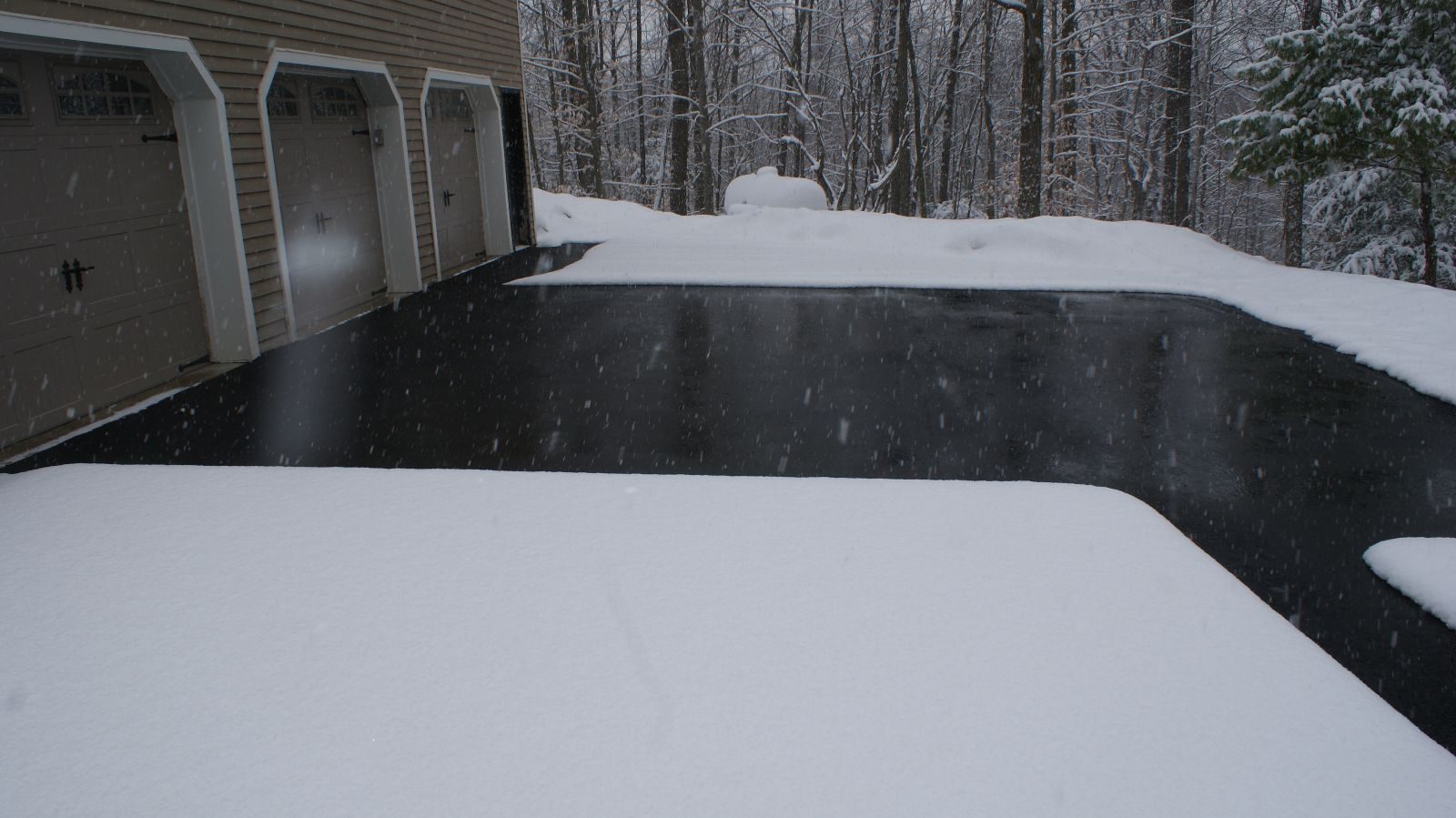

Snow melting system keeping a garage apron and driveway clear
A garage apron and driveway kept clear by snow melt.
Cutaway drawing of a ThermaRay snow and ice melting system under a paved surface
Cutaway of a snow melt system below the wear surface.

Reduce your risk
of slips and falls.

Each year, there are over 300,000 emergency room visits and over 12,000 deaths related to slips and falls on ice and snow. According to Zurich Insurance, the average general liability claim is $15,132 and the average worker’s compensation claim is $29,056.

A good snow removal plan matters, but winter weather can overwhelm even the most diligent shoveling, plowing and salting.

A snow melt system prevents slips and falls by melting ice and snow before it builds up and freezes. Keep building entrances, sidewalks, walkways, steps, ramps and parking lots clear for guests and employees, and reduce your liability this winter.

Heated paver walkway clear and dry, with snow piled on both sides
A heated paver walkway stays clear while the yard is buried.

Specs and sizes.

Snow and Ice Melting specifications
Heating elementDouble Teflon-coated nickel-chromium heating wire embedded in a gypsum (sheetrock) panel. The panel just keeps the wire evenly spaced and makes it easy to ship and handle.
Panel thickness1/2 inch
Panel width18 inches
Panel lengths4, 5, 7 or 8 feet
ConnectionsTwo hot-to-cold feed connections, with two 6-inch leads at one end of each panel
Insulation under panels1 or 2 inch rigid foam board, or Low-E Slab Shield
SurfacesConcrete, pavers or asphalt
ControlsMoisture and temperature sensors, with optional black ice detection
LEEDQualifies for up to 15 points

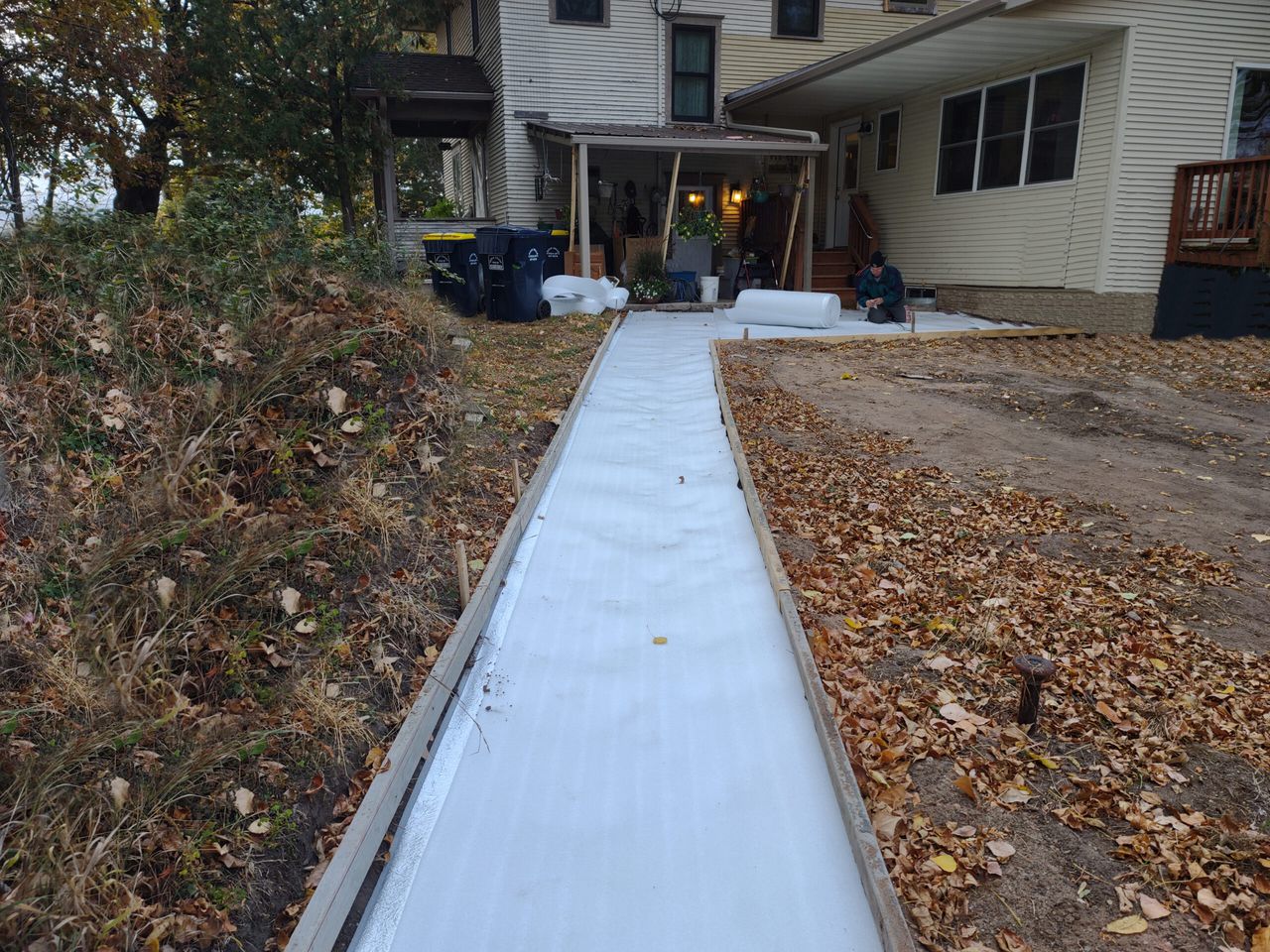

Snow melt going in along a home walkway, with a white Low-E slab shield laid in the trench
A walkway going in, with Low-E slab shield under the panels.

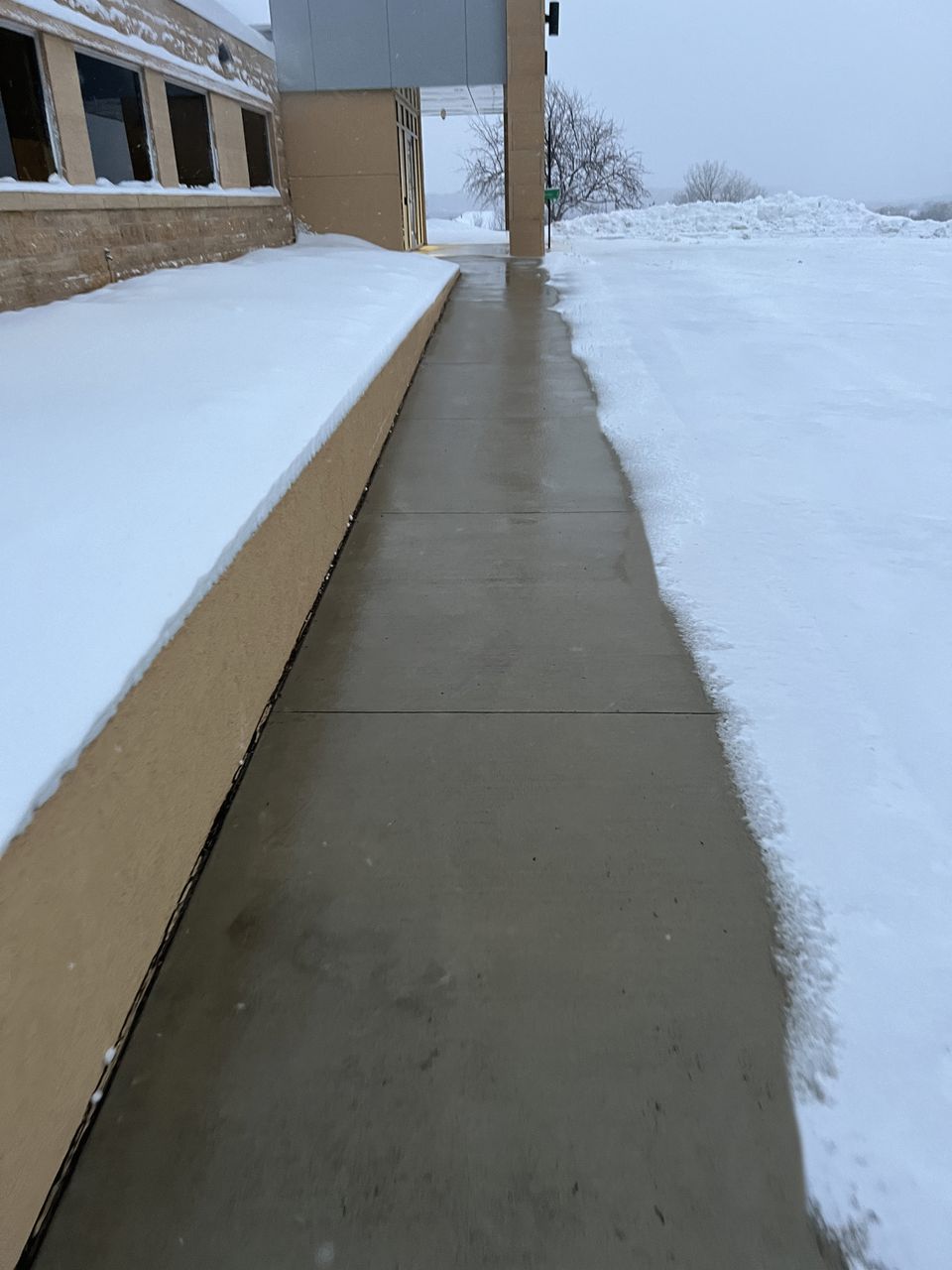

Clear concrete walkway beside a building after a snowfall, with snow covering the ground on both sides
A heated walkway after a snowfall.

Installed and working.

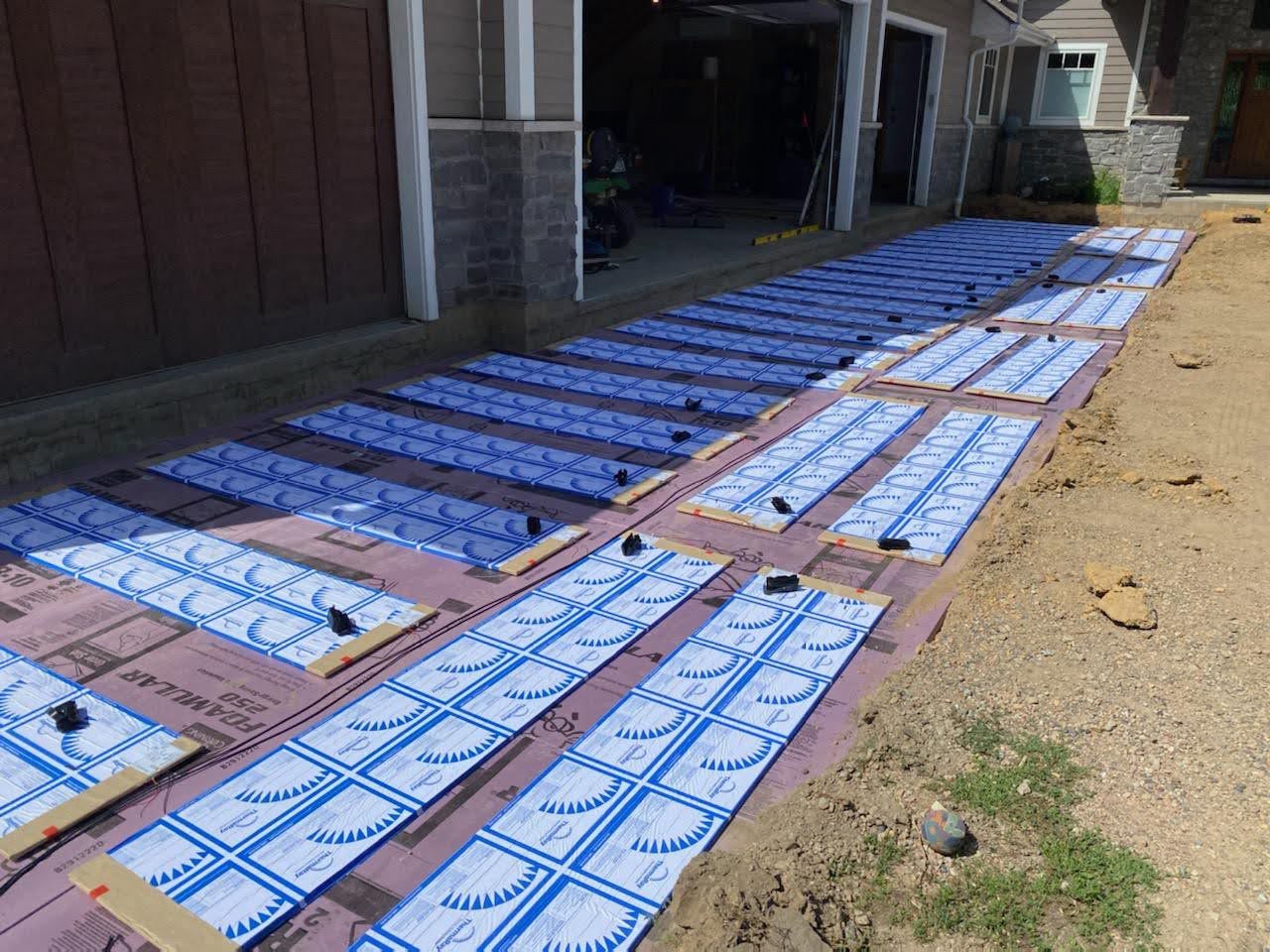

ThermaRay snow and ice melting panels laid on a garage apron before the concrete is poured

Residential

Garage Apron and Driveway

Snow melt panels on a garage apron before the concrete is poured.

Common questions.

Have one that isn't here? Call 800-506-7973.

More answers

All Questions

How much does a heated driveway cost?

It depends on the area, the surface (concrete, pavers or asphalt) and your electric rate. Because sensors only run the system when snow or ice is present, operating costs stay low. Premier Energy USA provides a free assessment and estimate for each project.

How does a snow melt system know when to turn on?

Snow sensors monitor moisture and temperature. When snow or ice is imminent, they start the system and keep it running until conditions clear. Black ice detection is also available.

Why do the panels go below the surface instead of in the concrete?

Embedded systems are exposed to the cracking, heaving, shifting and salt that wear concrete out. Placing the panels below the wear surface protects them for the life of the driveway.

Does a heated driveway need insulation underneath?

Yes. Unlike the thermal mass floor system, snow melt uses 1 to 2 inches of rigid foam or Low-E Slab Shield under the panels, so the heat goes up to the surface as fast as possible.

Can it go under pavers or asphalt?

Yes. The system works under concrete, pavers and asphalt for driveways, sidewalks, steps, ramps, entrances and parking areas.

How long does a heated driveway last?

ThermaRay has a 45+ year track record with no failed systems. The panels sit below the surface rather than in the concrete, so they aren't exposed to the cracking and wear of the driveway itself.

Get a design for your building.

Tell us about the space and we'll size the system room by room, with drawings and install instructions for you or your electrician.
